Asixxsix RV Power Cord Twist Lock, 50 AMP RV Plug Power Connector with Boot Inlet NEMA 50R Locking Female Shore Replacement Inlet for RVs Caravan Trailer Van

Specification: Item Type: RV Power Cord Twist Lock Plug with Boot Locking Cover Material: PVC, brass Rated Current: 50A Plug Type: NEMA ​ 50R Plug Size: Approx. 13x5.1x5.9cm/5.1x2.0x2.3in Cover Size: Approx. 13.2x8.2cm/5.2x3.2in Wiring Specifications 1. Strip 3/4 inch of insulation from the wire end, ensuring the wire core is clean, strip the wire again. 2. Wire color coding: 3 Wire system: Black: hot wire, white: neutral wire, green: equipment ground wire 4 Wire system: Black: hot wire, red: hot wire, white: neutral wire, green: equipment ground wire 3. Insert the wires into the terminal holes, tighten the terminal screws to 20 inch pounds torque, ensuring no insulation is left behind. 4. Wiring: Thread the internal wiring through the box opening using at least 10 AWG/3c wire, do not use smaller wire to prevent overheating and potential electrical fires. 5. Strip and connect: Strip 3/5 inch from the wire ends, ensure the wires are clean, insert them into the openings behind the inlet following color coding, and tighten the terminal screws. 6. Organizing and securing: Route the wires through the backplate and strain relief device, slide the backplate behind the inlet, and tighten the strain relief screw. Position the inlet over the enclosure opening, align the mounting holes, and secure the inlet to the enclosure using screws. Adjustment Steps: Power off: Cut off power at the circuit breaker. Remove old inlet: Detach the old inlet from the housing and disconnect the internal wiring. packing list: 1 x RV Power Cord Twist Lock Plug 1 x Protective Cover 1 x Instruction Manual

• 【High Current Rating】The NEMA ​ 50R plug is rated for 50AMP, they pack a punch and give the extra juice you need to adventure on, featuring a connector with a locking ring​ cover that ensures water proof and dust proof performance. Set up your RV or boat to handle power-hungry appliances by installing our power cord.
• 【Compatible Wiring】Recommended to use 6AWG/4C or 6AWG/3C and 8AWG/1C cable, and internal wiring should pass through the box opening. Avoid smaller wires to prevent overheating and potential electrical fires. Our inlet provides energy safely for the family due to its trusted ETL certification and design.
• 【PVC ABS Construction】Constructed with heavy duty ABS material, the plug housing is high temperature proof and flame​ retardant. The weather proof cover is made from premium PVC for added protecting. Gorgeous campers or marine applications deserve the best, so add our power connector to stand the test of time with its heavy-duty PVC construction.

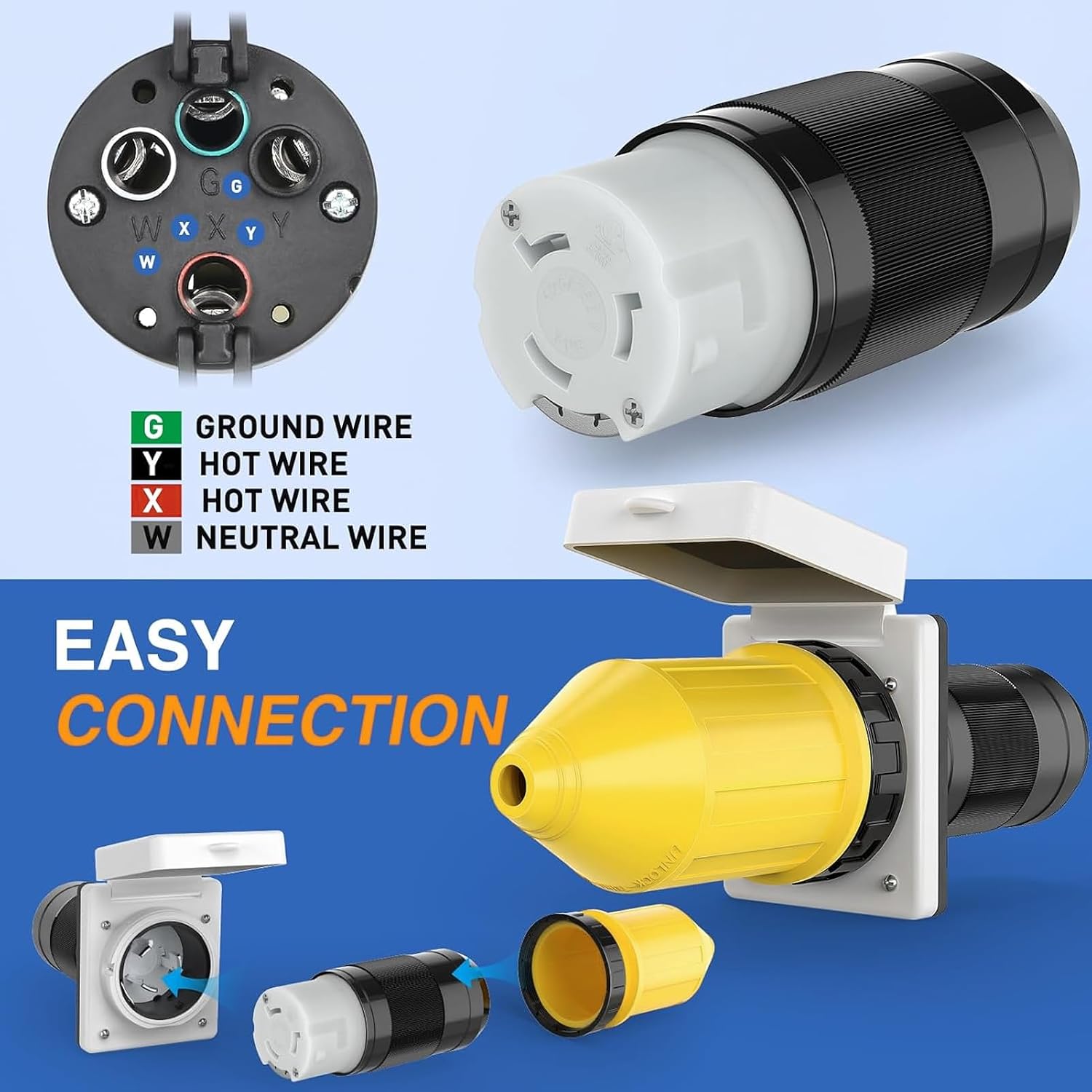

• 【Simplified Installation】Color coded terminals facilitate straightforward installation, green for ground, black and red for ​, white for neutral wires, streamlining the process. Ideal for RVs, camping cars, trailers, boats, caravans, and van, offering dependable power connections across a variety of recreational vehicles.
• 【satisfaction】We always strive to provide our customers with the best service and products. Please feel to reach our professional after-sales service if you have any questions, we will give you the most satisfactory answer as soon as possible! Thank you for your understanding.
