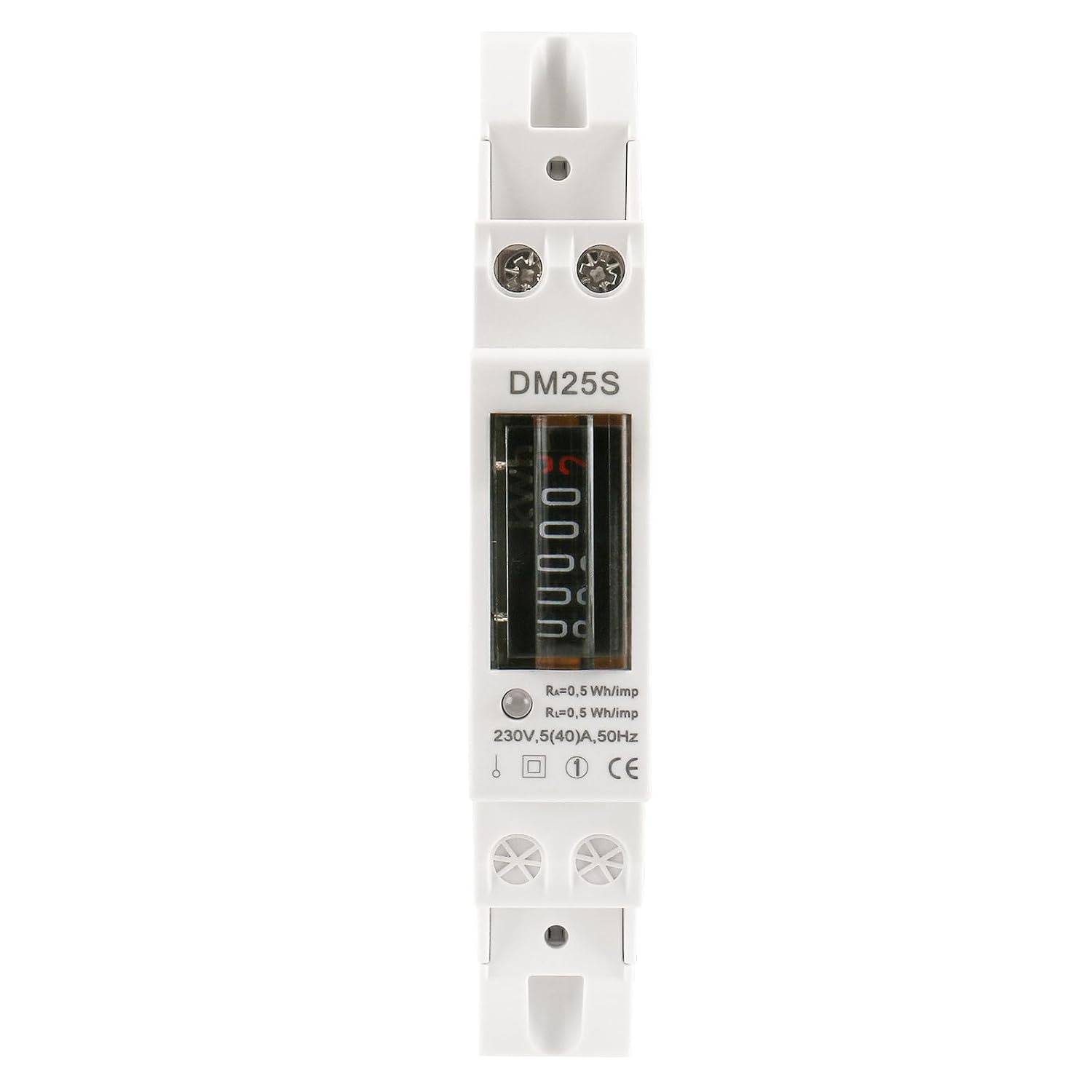

Baomain 1-Module DIN Rail Energy Meter 5(40) A 220–230V 50Hz Single Phase kWh Meter, Class 1, Counter Display 5+1, Industrial Power Consumption Monitor for Distribution Panel
Product details
| Management number | 246985908 | Release Date | 2026/08/16 | List Price | US$4.36 | Model Number | 246985908 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Single Phase Energy kWh meter is widely used in rail, smart switch cabinet, intelligent buildings, smart factories and energy management systems. Phase : Single Phase (2 wire)Nominal Voltage (Un): 220VAC Opertional Voltage: 100-300V ACInsulation capabilities: ① AC Voltage withstand 2kV for 1 minutes ② Impulse voltage withstand 6kV-1.2μS waveformBasic current(Ib): 5AAccuracy Class: 1.0Measuring range: 0-99999.9Maximum rated current( Imax) : 5(20A)/ 5(30A)/ 5(40A)Operational current range: 0.25A~40AOver current withstand: 960A for 0.01sOperational Frequency range: 50Hz-60Hz ±10%Internal power consumption： ≤ 2W/10VATest output flash rate(RED LED): 2000 Impulses per kWh (0.5Wh/imp)Pulse output rate（pins 20&21): 2000 pulses per kWh (0.5Wh/imp)Power supply indicator(Green Led),meter is connected and working OKConsumption Indicator (RED LED): Flashing at load runningDisplay Type: Counter Display 5+1 with backlightOperating Humidity : ≤ 75%Storage Humidity : ≤ 95%Operating Temperature: -25°C~+55°CStorage Temperature: -30°C~+70°CInternational Standard： IEC 62053-21IP Protection: IP51(panel) /IP20 (case)Insulating encased meter of protective class: IIHousing Material: PC Inflammable retarding,Environmenta,Flame Retardant Data save: The data can be stored more than 20 Years when power cut.
- Industrial DIN Rail Design: 1-module (18mm) compact kWh meter designed for standard 35mm DIN rail installation in distribution panels, control cabinets, and metering systems
- Wide Measurement Range 5(40)A: Supports operational current from 0.25A up to 40A, suitable for residential, commercial, and light industrial power monitoring
- High Accuracy Class 1: Meets IEC Class 1 standard, ensuring reliable and precise energy measurement for billing or energy management
- Clear Counter Display 5+1: Mechanical-style counter with backlight for easy reading in low-light environments and long-term stability
- 220–230VAC Single Phase 2-Wire: Compatible with standard AC mains (50Hz), ideal for sub-metering, equipment monitoring, and energy allocation
| ASIN | B0CT8622DL |
|---|---|
| Color | Grey White |
| Model | Counter Display / DM25S |
| Brand Name | Baomain |
| Style Name | Single Phase |
| Part Number | DM25S(A) |
| Manufacturer | Baomain |
| Power Source | / |
| Item Dimensions | 4.5 x 0.7 x 2.3 inches |
| Number of Items | 1 |
| Measurement Type | Electrical |
| Specification Met | CE, RoHS |
| Included Components | Two Wires Energy Meter, User manual |
| Upper Temperature Rating | 55 °C |
